Includes Models: H15U-NG, H15U-LP
MAIN ASSEMBLY
Item Description (Part Number)
QTY: 1 Gray Cast Top (383-201) +$359.56
QTY: 1A Timberline Brown Cast Top (383-215) +$483.36
QTY: 1B Cream Cast Top (383-217) +$483.36
QTY: 2 Gray Cast Front (383-211) +$285.64
QTY: 2A Timberline Brown Cast Front (383-205) +$531.19
QTY: 2B Cream Cast Front (383-207) +$531.19
QTY: 3 Grey Cast Left/Right Side with Legs [2 per side, each side sold separately] (383-221) +$293.57
QTY: 3A Timberline Brown Cast Left/Right Side with Legs [2 per side, each side sold separately] (383-225) +$528.38
QTY: 3B Cream Cast Left/Right Side with Legs [2 per side, each side sold separately] (383-227) +$528.38
QTY: 4 Gray Top Front Grill (383-231) +$68.26
QTY: 4A Timberline Brown Top Front Grill (383-235) +$225.73
QTY: 4B Cream Top Front Grill (383-237) +$225.73
QTY: 5 Rear Panel (384-007) +$123.61
QTY: 6 Control Panel Top Rear (280-033) +$49.20
QTY: 7 Control Panel Decal Top On/Off and Fan (920-443) +$44.45
QTY: 8 Fan (384-917) +$487.00
QTY: 9 45 Degree Starter Collar (945F) +$133.75
QTY: 10 Right Fan Deflector (382-025) +$Call to Order
QTY: 11 Left Fan Deflector (382-024) +$Call to Order
QTY: 12 Top Relief Plate Door [recommend replacing gasket] (770-066F) +$19.26
QTY: 13 Top Relief Plate Door Gasket (W260280) +$10.95
QTY: 15 Top Relief Frame [recommend replacing gasket] (942-117) +$46.79
QTY: 15A Top Relief Frame Gasket (W260260) +$10.95
QTY: 16 Pressure Relief Bolt [each sold separately] (904-012) +$10.95
QTY: 17 Front Control Cover Plate (384-006) +$34.32
QTY: 18 Front Control Access Door (382-015) +$52.66
QTY: 19 Decal Control Panel Front Hi/Lo and Pilot (920-447) +$44.45
QTY: 20 Valve Cover Bottom (384-017) +$91.33
QTY: 21 Door Frame Only (380-007) +$92.40
QTY: 22 Glass with Gasket (940-338/P) +$217.29
QTY: 22A Glass Gasket with Adhesive [6 ft per package] (41225-6) +$55.19
QTY: 23 Door Latch [2 per unit, each sold separately] (948-255) +$40.92
QTY: 24 Mesh Glass Guard (382-005) +$107.34
QTY: 25 2-Way Gold Contact Switch (910-246) +$29.28
ITEMS NOT SHOWN - MAIN ASSEMBLY
Item Description (Part Number)
QTY: 49 Blower Motor with Squirrel Cage (910-157/P) +$308.92
QTY: 50 Blower Screen/Guard [each sold separately] (384-018F) +$13.66
QTY: 51 Fan Thermodisc (910-142) +$43.86
QTY: 52 Fan Speed Controller with Connectors [knob sold separately] (910-330) +$80.93
QTY: 53 Fan Speed Controller Knob (904-586) +$16.18
QTY: 54 Power Cord (910-794) +$43.86
QTY: 55 Spark Generator Battery Holder (910-073) +$68.26
QTY: 56 Spark Generator Switch with Wire (910-074) +$46.79
QTY: 57 Magnetic Catch (904-257) +$10.95
QTY: 58 Complete Log Set (380-930) +$376.45
QTY: 97 Conversion Kit - NG to LP (384-969) +$74.00
QTY: 98 Programmable Wall Thermostat (910-404/P) +$260.00

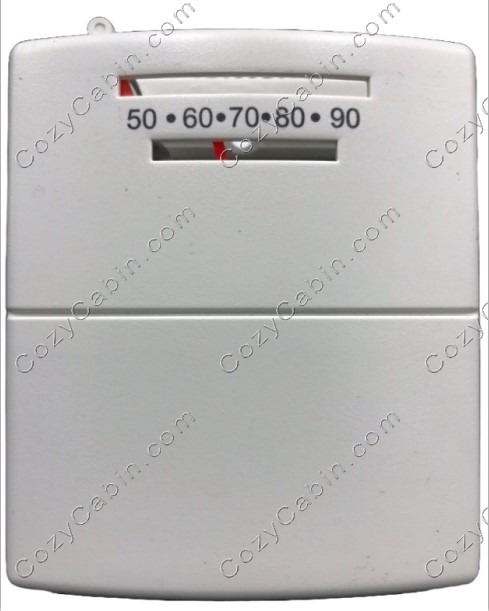

QTY: 99 Wall Thermostat [hard wired] (910-407) +$56.00
QTY: 100 FireGenie Remote Control (910-399) +$223.00
VALVE ASSEMBLY
Item Description (Part Number)
QTY: 40 Novasit Gas Valve - NG/LP [hi/low] (910-568) +$225.73
QTY: 41 Burner Tube - NG/LP [recommend replacing burner box gasket] (380-505) +$342.68
QTY: 42 Burner Box Gasket (380-015) +$16.18
QTY: 43 HI/Low Knob Extension (910-372) +$16.18
QTY: 44 Pilot, On/Off Knob Extension (910-373) +$16.18
QTY: 45 Front Control Cover Plate (384-006) +$34.32
QTY: 46 Front Control Access Cover (382-015) +$52.66
QTY: 47 Hi/Lo and Pilot Decal Control Panel Front (920-447) +$44.45
QTY: 48 Valve Cover Bottom (384-017) +$91.33
ITEMS NOT SHOWN - VALVE ASSEMBLY
Item Description (Part Number)
QTY: 59 Valve Assembly - NG (384-574/P) +$525.23
QTY: 60 Valve Assembly - LP (384-576/P) +$525.23
QTY: 61 Novasit Pilot Assembly NG [recommend using High Temp Red Silicone and replacing gasket] (910-038/P) +$130.82
QTY: 62 Novasit Pilot Assembly - LP [recommend using High Temp Red Silicone and replacing gasket] (910-039/P) +$130.82
QTY: 62A High Temperature Red Silicone (70AW) +$18.33
QTY: 63 Novasit Pilot Orifice - NG (910-036) +$43.86
QTY: 64 Novasit Pilot Orifice - LP (910-037) +$26.20
QTY: 65 Novasit Pilot Hood 3-Way (910-096) +$32.36
QTY: 66 Novasit Pilot Tubing with Nuts (910-432) +$35.44
QTY: 67 Novasit Electrode - Short (910-030) +$46.79
QTY: 68 Robertshaw Thermopile (910-341) +$95.60
QTY: 69 Thermocouple (910-386) +$49.73
QTY: 70 Burner Orifice #47 - NG (904-434) +$43.86
QTY: 71 Burner Orifice #55 - LP (904-575) +$43.86
QTY: 72 Stainless Steel Flexible Tubing (932-009) +$29.28
QTY: 73 90 Degree Fitting Elbow [Located at End of Tubing] (904-599) +$26.20
QTY: 74 90 Degree Fitting Elbow [Located at Orifice End] (904-600) +$13.10
QTY: 75 1/8 Inch Fitting Brass Pipe Adapter (904-650) +$10.95
QTY: 76 90 Degree Forged Elbow Fitting [Valve Outlet End] (904-629) +$29.28
QTY: 77 90 Degree Forged Elbow Fitting [Valve Inlet End] (904-606) +$29.28
QTY: 78 Inlet Flex Line (904-658) +$49.73
QTY: 79 4mm Valve Screw with Red O-Ring (910-941) +$40.92
QTY: 80 Black Protective Cap (910-940) +$16.18
QTY: 81 Pilot Orifice Allen Key (904-529) +$10.95
QTY: 82 Firebox Baffle (380-010) +$52.66
QTY: 83 Restrictor (380-011) +$46.79
QTY: 84 Burner Orifice Gasket (936-170) +$10.95
QTY: 85 Pilot Assembly Gasket [2 per unit, each sold separately] (W840470) +$10.95
ACCESSORIES
Item Description (Part Number)
QTY: 86 Embers [bag] (902-156) +$49.73
QTY: 87 Hampton Logo Plate [each sold separately] (948-219) +$68.26
QTY: 88 Starter Collar Gasket - Outer (W842051) +$13.10
QTY: 89 Starter Collar Gasket - Inner (W260108) +$13.10
QTY: 90 Touch Up Paint Charcoal Grey (938-136) +$68.26
QTY: 91 Touch Up Paint Brown (W801015) +$62.39
QTY: 92 Touch Up Paint Cream (938-337) +$220.87
QTY: 93 Front Top Cast Mounting Bracket - Left (382-022) +$35.44
QTY: 94 Front Top Cast Mounting Bracket - Right (382-023) +$35.44
QTY: 95 Firebox Side Bracket - Left (382-001) +$65.33
QTY: 96 Firebox Side Bracket - Right (382-002) +$65.33
QTY: 97 Owners Manual [hard copy] [920-425] (OMHC-R) +$9.99
QTY: 98 Owners Manual [electronic copy] [920-425] (OMEL-R) +$0.00
|
