Regency San Francisco Bay 40 Modern Zero Clearance Direct Vent Natural Gas Fireplace (CB40E-NG11) #CB40E-NG11

Regency San Francisco Bay 40 Modern Zero Clearance Direct Vent Natural Gas Fireplace (CB40E-NG11)

Item#: CB40E-NG11

Price: $0.00


Order Now


Customer ratings: This item has never been rated.
Rate this   Buy this

City Series

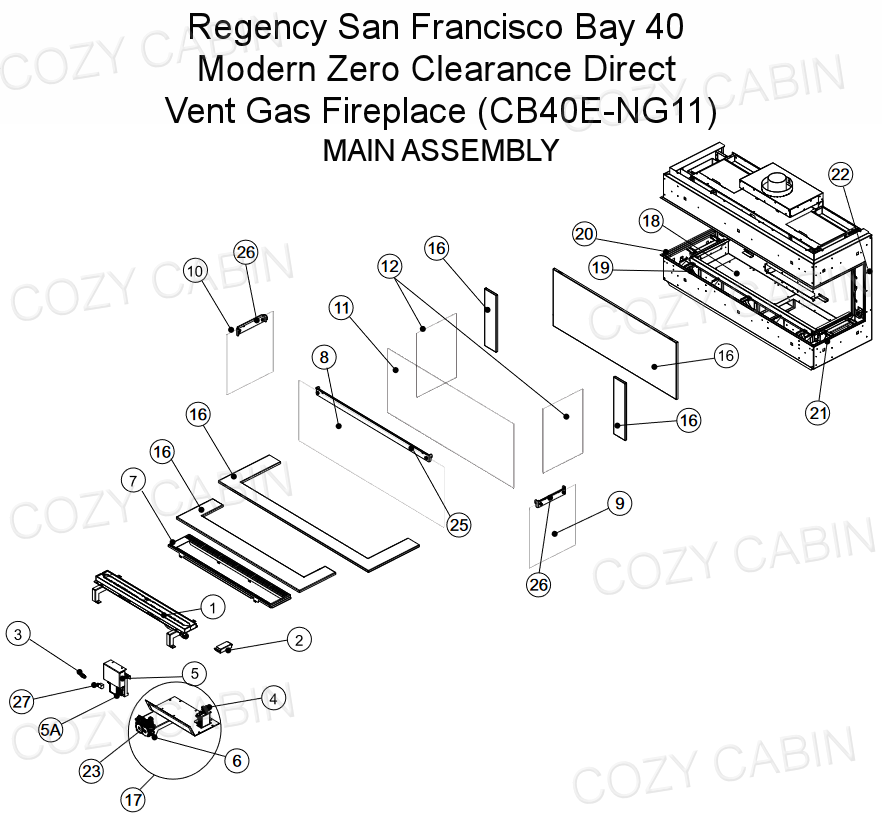

MAIN ASSEMBLY

Item Description (Part Number)

QTY: 1 Burner (657-525) +$334.5

QTY: 2 Pilot Cover/Shield (656-046) +$51.6

QTY: 3 Burner Orifice #42 - NG (904-996) +$58.12

QTY: 4 IPI 2 Flame Pilot Assembly - NG [recommend using High Temp Red Silicone and replacing gasket] (911-276) +$131.35

QTY: 4A High Temperature Red Silicone (70AW) +$20.13

QTY: 4B Pilot Assembly Gasket (W840470) +$15.06

QTY: 5 IFC Cover/Shield (657-009) +$77.99

QTY: 5A IFC Board Sit ProFlame II with Antenna [7 Day, Pv 5 Second, FFRT] (911-266/P) +$497.23

QTY: 6 IPI Novasit Valve - NG (911-188) +$293.57

QTY: 7 Burner Surround (656-045) +$118.01

QTY: 8 Outer Front Barrier Tempered Glass (940-438/P) +$1130.06

QTY: 9 Outer Right Barrier Tempered Glass (940-439/P) +$499.43

QTY: 10 Outer Left Barrier Tempered Glass (940-440/P) +$525.89

QTY: 11 Flush Front Inner Ceramic Glass (940-436/P) +$938.23

QTY: 12 Flush Side Inner Ceramic Glass [2 per unit, each sold separately] (940-437/P) +$454.72

QTY: 16 Inner Glass Black Panel Kit (656-916) +$2382

QTY: 16A Inner Enamel Black Panel Kit (656-918) +$713

QTY: 16B Inner Painted Black Panel Kit (656-917) +$306

QTY: 17 Valve Assembly - NG (656-574/P) +$730.96

QTY: 18 Bottom Cover Access Plate (656-033F) +$46.26

QTY: 18A Bottom Cover Access Gasket (656-034) +$43.59

QTY: 19 Front Bottom Removable Drywall Finishing Lip (656-123) +$46.26

QTY: 20 Left Bottom Removable Drywall Finishing Lip (656-124) +$46.26

QTY: 21 Right Bottom Removable Drywall Finishing Lip (656-127) +$46.26

QTY: 22 Vertical Sides Removable Drywall Finishing Trim [2 per unit, each sold separately] (656-125) +$43.59

QTY: 23 Sit Stepper Motor - NG (911-190) +$152.7

QTY: 25 Outer Front Barrier Glass Hanging Bracket (656-084) +$75.32

QTY: 26 Outer Side Barrier Glass Hanging Bracket [2 per unit, each sold separately] (656-130) +$58.12

QTY: 27 Bracket Dormont Orifice Mount (904-943) +$83.33

ITEMS NOT SHOWN - MAIN ASSEMBLY

Item Description (Part Number)

QTY: 28 Rope Gasket [10 ft per package] (936-219-10) +$155.9

QTY: 29 Gasket Tape 2 Inches Wide (936-220) +$15.06

QTY: 30 Rear Panel Clips (656-114) +$15.06

QTY: 31 Right Outer Front Barrier Glass Guide (656-081) +$40.92

QTY: 32 Left Outer Front Barrier Glass Guide (656-082) +$43.59

QTY: 33 Baffle Cover [2 per unit, each sold separately] (656-051) +$46.26

QTY: 34 Pilot Orifice #51 - NG (910-036) +$58.12

QTY: 35 Pilot Orifice #30 - LP (910-037) +$32.92

QTY: 36 Flame Sensor [Red End] (911-037) +$83.33

QTY: 37 Flame Electrode [Black End] (911-038) +$83.33

QTY: 38 Novasit Pilot Tubing with Nuts (910-432) +$46.26

QTY: 39 Two Way Pilot Hood (911-039) +$60.79

QTY: 40 Pilot Hood Clip (911-137) +$24.52

QTY: 41 Inlet Flex Line Gas Stainless Steel 24 Inch (904-658) +$60.79

QTY: 42 90 Degree Elbow Fitting (904-606) +$32.92

QTY: 43 Male Fitting (904-165) +$24.52

QTY: 45 Valve Assembly Gasket (656-040) +$40.92

QTY: 46 Burner Orifice Mount Gasket (656-039) +$15.06

QTY: 47 GTMFl Sit Hand Held Remote Control (911-175) +$207.31

QTY: 48 Remote Battery Box with Switch (911-337/P) +$136.69

QTY: 49 White Cover Wall Mount (911-335) +$43.59

QTY: 50 Black Cover Wall Mount (911-343) +$43.59

QTY: 51 Wire Harness IFC No CPI Switch (911-173) +$91.33

QTY: 52 Wire 4 Position IFC Fan and Light (911-177) +$103.34

QTY: 53 Wire Harness Battery Box ProFlame II (911-181) +$75.32

QTY: 54 Power Cord with Connector (911-192) +$80.66

QTY: 55 Connector with Jumper (911-193) +$77.99

QTY: 56 Wire 2 Position IFC to Lights (911-209) +$43.59

QTY: 57 Receptacle Box Low Voltage (910-369) +$30.12

QTY: 58 Receptacle Duplex White (910-428) +$24.52

QTY: 59 Receptacle Box Duplex Metal (910-429) +$46.26

QTY: 60 Receptacle Cover Duplex Metal (910-430) +$24.52

QTY: 61 Connector Clamp (904-687) +$15.06

QTY: 62 Glass Suction Cup [each sold separately] (948-078) +$78.12

QTY: 63 Round Magnet [each sold separately] (904-790) +$15.06

QTY: 64 Magnet Cup [each sold separately] (904-970) +$15.06

QTY: 65 Logo Plate Plastic Regency/Flame Silver (948-223) +$15.06

QTY: 66 Logo Mounting Bracket (656-550) +$128.68

QTY: 67 Restrictor Plate (656-017F) +$15.06

QTY: 68 Pressure Relief Base [recommend replacing gasket] (656-018) +$68.8

QTY: 69 Pressure Relief Base Gasket (656-023) +$27.32

QTY: 70 Right Pressure Relief Bracket (656-019) +$12.26

QTY: 71 Left Pressure Relief Bracket (656-020) +$15.06

QTY: 72 Pressure Relief Door [recommend replacing gasket] (656-021F) +$46.26

QTY: 73 Pressure Relief Door Gasket (656-022) +$30.12

QTY: 74 Rear Standoff [each sold separately] (656-075F) +$15.06

QTY: 75 Oven Lamp (911-208) +$115.34

QTY: 76 Light Glass Bracket (656-086) +$46.26

QTY: 77 Halogen High Temperature Bulb (911-072) +$27.32

QTY: 78 Light Rear Louver (656-087) +$15.06

QTY: 79 Light Cover Plate (656-088) +$51.6

QTY: 80 Light Deflector Shield (656-089) +$60.79

QTY: 81 Gasket Light Cover (656-085) +$15.06

QTY: 82 Left Top Glass Clamp [each sold separately] (656-079) +$17.86

QTY: 83 Right Top Glass Clamp [each sold separately] (656-080) +$17.86

QTY: 84 Lower Glass Clamp [each sold separately] (656-269) *No Longer Available* +$*0.00*

QTY: 85 Lower Glass Clamp Bracket [each sold separately] (656-052) +$51.6

ACCESSORIES

Item Description (Part Number)

QTY: 86 Conversion Kit - NG to LP (657-977) +$123

QTY: 87 Driftwood Log Set [Need set of Log Brackets] (656-930/P) +$564

QTY: 87A Log Bracket [2 per unit, each sold separately] (656-047) +$51.6

QTY: 87B Log Bracket (476-103/F) *No Longer Available* +$*0.00*

QTY: 88 Black Finishing Trim *No Longer Available* (NLA) +$*0.00*

QTY: 89 Black Chase Vent Front (656-991) +$332

QTY: 90 Adapter Heat Wave (656-995) +$179

QTY: 91 Heat Wave Kit (946-556) +$763

QTY: 92 River Pebbles (946-672) +$50

QTY: 93 Ceramic Spa Stones [70 Stones] (946-674) +$318

QTY: 94 Black Reflective Fireglass - 1 Pound Package (946-675) +$15

QTY: 95 Copper Fireglass - 1 Pound Package (946-676) +$15

QTY: 96 Starfire Fireglass - 1 Pound Package (946-677) +$15

QTY: 97 Black Reflective Fireglass - 5 Pound Package (946-775) +$50

QTY: 98 Copper Fireglass - 5 Pound Package (946-776) +$50

QTY: 99 Starfire Fireglass - 5 Pound Package (946-777) +$50

QTY: 100 Coal Black Crushed Glass - 3.5 Pound Package (946-780) +$40

QTY: 101 Iceberg Chips Crushed Glass - 3.5 Pound Package (946-781) +$40

QTY: 102 Black Firebeads - 1 Pound Package (946-735) +$15

QTY: 103 Sangria Luster Firebeads - 1 Pound Package (946-736) *No Longer Available* +$*0.00*

QTY: 104 Glacier Ice Firebeads - 1 Pound Package (946-737) +$15

QTY: 105 Caramel Luster Firebeads - 1 Pound Package (946-738) +$15

QTY: 106 Black Firebeads - 5 Pound Package (946-739) +$47

QTY: 107 Glowing Wool (946-634) +$30.12

QTY: 108 Chase Steel Frame Kit (656-950) +$1109

QTY: 109 Extended Chase Steel Framing (656-951) +$1299

QTY: 110 Extended Hearth Steel Framing (656-952) +$681

QTY: 111 Black Chase Side Vent (656-992) +$373

QTY: 112 Glass Black Corner Panels [For Use with Extended Chase Steel Framing] (656-920) +$913

QTY: 113 Exterior Glass Black Panels [For Use with Compact Framing] (656-921) +$454

QTY: 114 Hearth Top Black Glass Panels [For Use with Extended Hearth] (656-922) +$1736

QTY: 115 Owners Manual [Hard Copy] [919-926] (OMHC-R) +$9.99

QTY: 116 Owners Manual [Electronic Copy] [919-926] (OMEL-R) +$0

QTY: 117 Tv Installation Kit (956-924) *No Longer Available* +$*0.00*
